Yarway INB100 Inverted Bucket Steam Traps

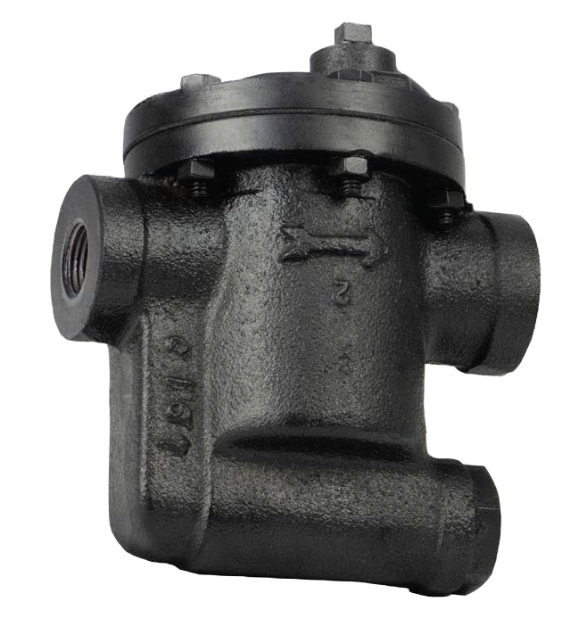

INB100 Series Inverted Bucket Steam Trap
The INB100 Series inverted bucket steam traps utilized in a variety of light condensate load applications such as drip, tracer, and small air heaters and unit heaters.
These traps are simple and reliable while discharging condensate close to the saturation curve.
Yarway INB100 Inverted Bucket Steam Traps

Specs

Technology
Mechanical (Inverted Bucket)
Size
NPS 1/2, 3/4, 1, and 1-1/4 / DN 15, 20, 25, and 32
Operating Pressure
600 psi (42 bar)
Capacity
Up to 4400 lb/hr (1950 kg/hr)
Connections
NPT, SWE, BSPT, 150RF, 300RF, PN40
Materials
Cast Iron or carbon steel

Features

  • Suitable for wide variety of loads and applications
  • Resists Dirt and Scale – the valve and orifice are positioned at top of traps
  • Chrome steel valve and orifice – Long life and maximum corrosion resistance
  • Top-entry, Inline repairable
  • Equipped standard with a strainer
